CDP60 – COMPACT HANHELD PRESSURE CALIBRATOR

The CDP60 calibrator checks the pressure calibration of leak and flow measurement instruments as well as any other pressure measuring instrument.

This light, compact and user friendly calibrator is essential for field or laboratory checks, when accuracy and repeatability cannot be compromised and large instrument are too bulky or too expensive.

With the CDP, you can now easily check and follow the requirements of ISO or other quality standards.

CONTACT US

CDP60: APPLICATIONS

Pressure Calibration checking on Leak and Flow testers
Checking of other types of pressure measuring instrument

CDP60: FEATURES

• Automatic sleep mode
• Print out (USB or RS232)
• Battery level check
• LCD display (4 x20 characters)
• 1 year warranty
• Accessories : Carrying case, pressure generator (1000 Pa), pocket, protective holster.

MEASUREMENT RANGES :

FLOW MEASUREMENT
RangeAccuracy up to*Max. Resolution
500 Pa1% VM + 1 Pa
(0.5% VM + 0.5 Pa)*
0.1 Pa
5000 Pa1% VM + 10 Pa
(0.5% VM + 5 Pa)*
1 Pa
– 1 000 > 500 hPa0.2% VM + 1 hPa0.1 hPa
– 1 000 > 5000 hPa0.2% VM + 5 hPa1 hPa
0.1 > 2 MPa0.2% VM + 2 kPa10 hPa

VM = Measured Value. Accuracy: includes non-linearity, hysteresis, and repeatability.
Optional specification (adjusted by our accredited COFRAC
metrology laboratory)

CDP60: FACTSHEETS

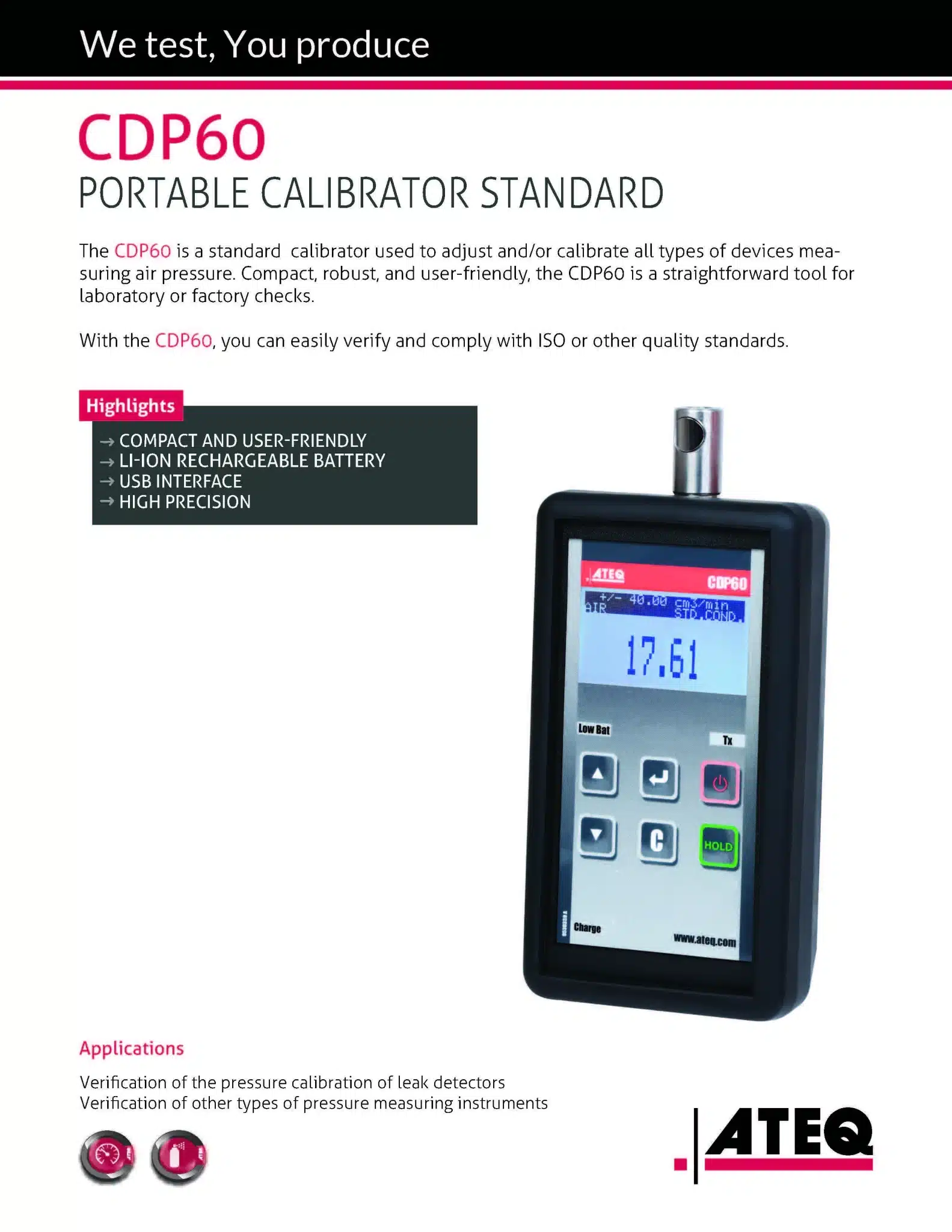

[US] – CDP60

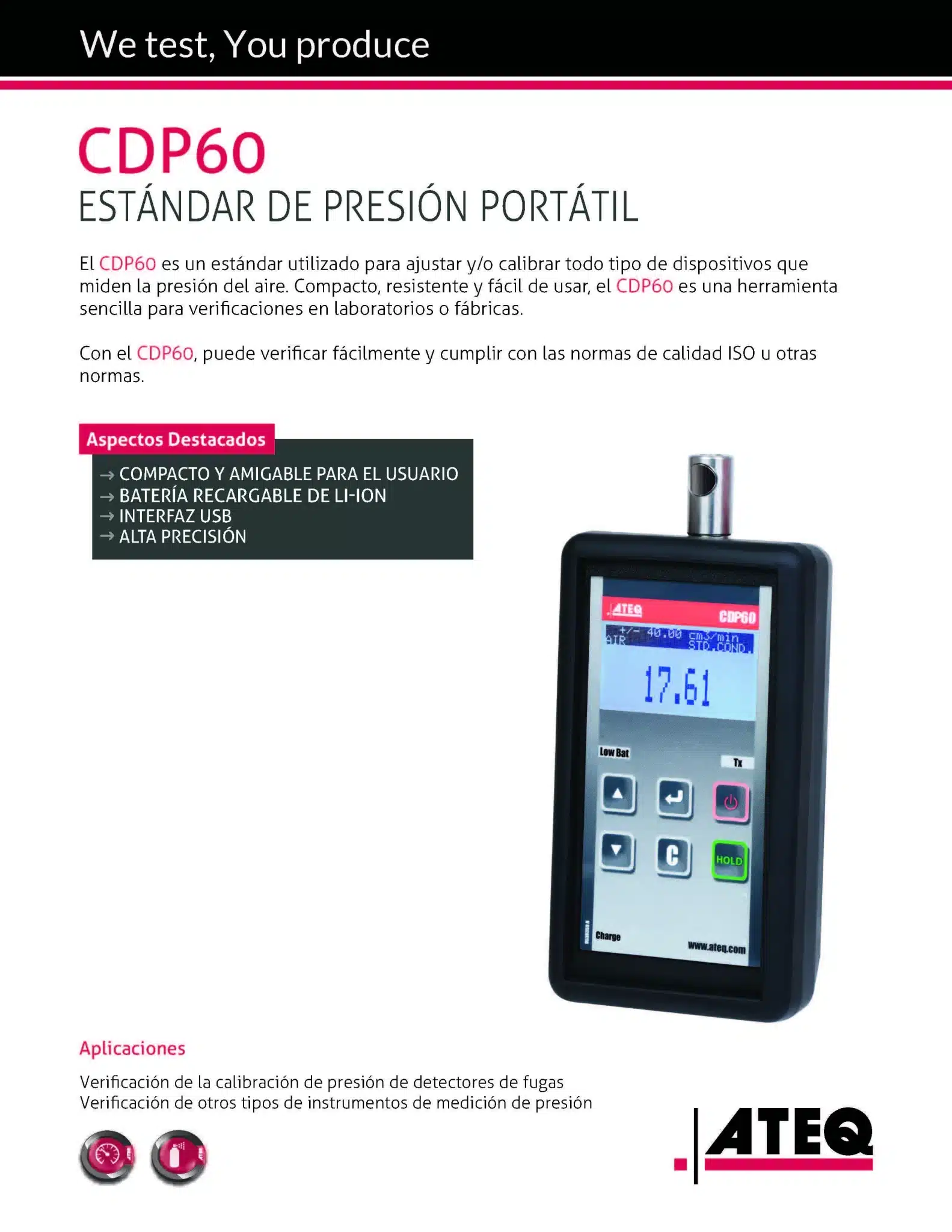

[MX] – CDP60

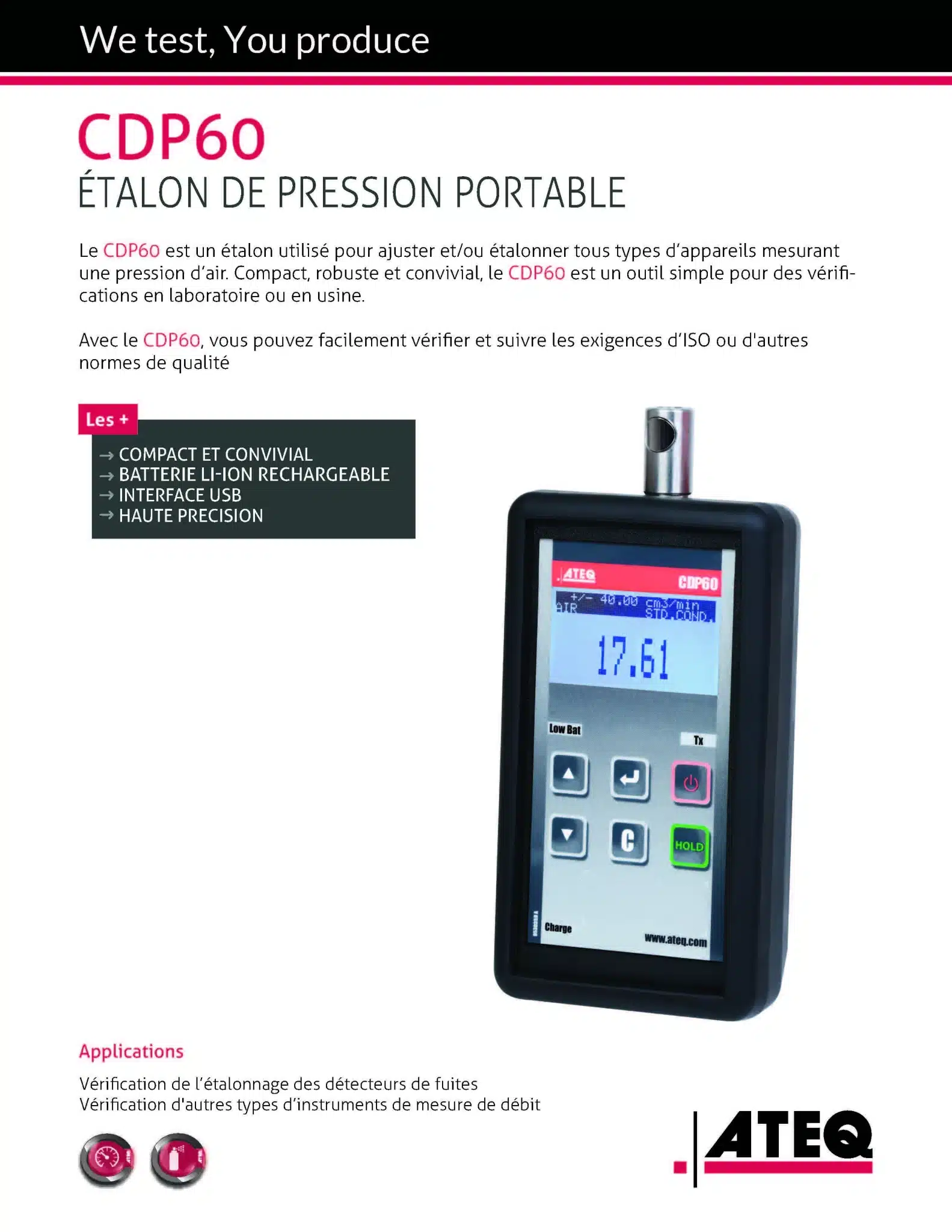

[FR] – CDP60
