D620-HIGH SPEED COMPACT FLOW TESTER

D620 – HIGH SPEED COMPACT FLOW TESTER

After 46 years, and 275,000 testers installed in more than 5,000 customers worldwide, ATEQ presents its revolutionary flow tester: D620.

New electronic module, new measurement module, new interface, new accessories… All has been made to improve your quality control.

And yet, inside can be found the latest leak testing technics and technology that will guarantee you the fastest and most accurate leak testing cycle on the market.

CONTACT US

D620 : APPLICATIONS

Automotive, domestic appliances, medical, aeronautic, defense, fluid and electrical components, food and cosmetic packaging…

D620 : FEATURES

• Flow measurement in direct or indirect testing
• Continuous measuring mode
• Wide flow measurement range
• USA, S.I. and customer units
• Measurement in standard or customized conditions
• Recalculated flow at the nominal pressure
• Measurement element fully integrated into one module
• 128 programs
• Mechanical or electronic regulator from vacuum to 10 bar
• setting on line (via USB)
• 2 languages (English + other one)
• Manual calibration on front panel with calibrated leak
• Data storage on internal memory or USB key

ENVIRONMENT :
ROHS standard

FLEXIBLE COMMUNICATION FORMAT :

• RS232: Printer, modbus RTU
• Slave USB: PC supervision (WinAteq 300, sesame)
• Master USB: USB key to transfert (parameters, results, …)
• Option Fieldbus: Profibus, devicenet, profinet, Ethernet/IP, Modbus RTU

MEASUREMENT CHARACTERISTICS :

D620 : SPECIFICATIONS

  • PHYSICAL

    • Weight : 7 Kg
    • Dimensions : (WxHxD) 250x150x360 mm
  • ELECTRICAL SUPPLY

    • Voltage : 24 V DC/2A or 100 – 240 V AC/50W
    • Mains adapter included (110-230 V AC)
  • TEMPERATURE

    • Operating : + 5°C at + 45°C
    • Storage : 0°C at + 60°C
  • INTERFACE

    • Graphic color screen with simple and intuitive menu-driven operator controls
    • SMART KEY : programmable key with user’s functions
  • AIR SUPPLY

    • Clean and dry air required
    • Air quality standard to be applied (ISO 8573-1)

D620 : OPTIONS

• 9 inputs / 5 local outputs compatible with 5 series instruments
• 6 inputs/ 6 outputs 24 V programmable for external automation
• Electronic regulator
• Dual pressure
• Automatic calibration check
• 2 pneumatic outputs for control of sealing connectors
• Memory card for archiving results (1 million)

D620 : FACTSHEETS

Detailed information about the D620 including features, specifications, etc.

D620 : TECHNOLOGY

Sometimes a leak can be considered as a “small flow”, or a flow as a “big leak”. When your reject level is too high for other technologies, it may be necessary to use a laminar flow tester. A flow takes place between the pressure line and the leak hole of the part.
Our instrument features a laminar flow element across which our differential pressure transducer is connected.

Every flow generates a pressure difference between the inlet and outlet of the laminar flow element, and this variation is measured by the pressure transducer.

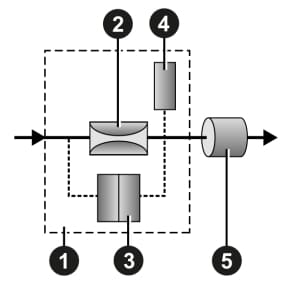

When the fluid (gas) enters the device 1, it moves through a calibrated flow tube 2 which causes a drop in pressure. The pressure drop is measured by a differential pressure sensor 3. The pressure of the part under test 5 is measured by the sensor 4.
