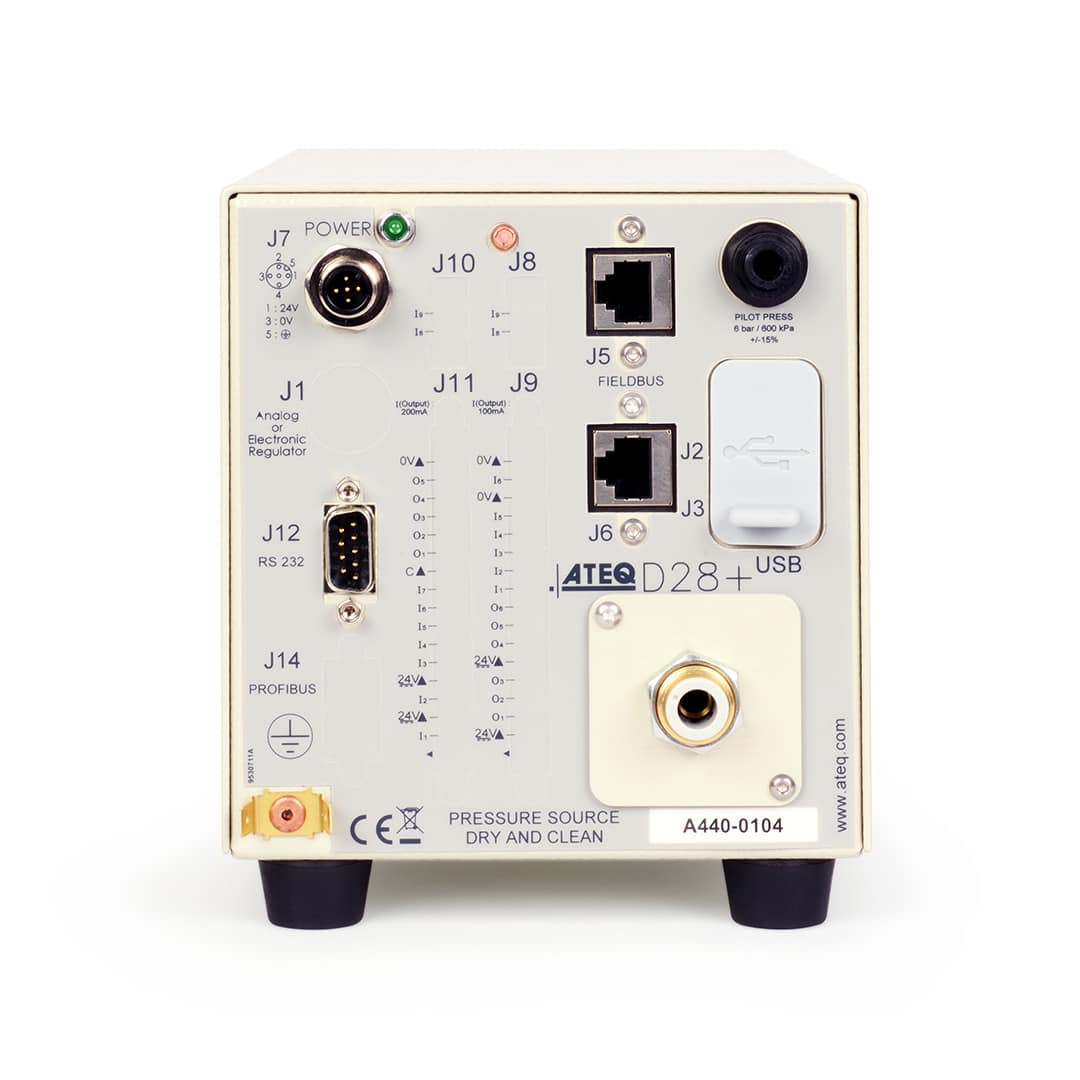

D28+ HIGH SPEED COMPACT FLOW TESTER

D28+: The new innovative tester, made by ATEQ, elevates the flow test to a whole new level of speed, flexibility and accuracy. You can easily supervise it with a touch-screen panel + our user friendly interface: Winateq 300.
Adapted for manual, semi-automatic and fulled automated leak testing, the D28+ has a full range of specifications at a very competititve price.

APPLICATIONS

FEATURES

SPECIFICATIONS

FACTSHEETS

OPTIONS & ACCESSORIES

D28+ SPEED : APPLICATIONS

FLOW CONTROL
Cookers, ovens, valve, gas taps, gas burners, lighters…

LEAK DETECTION
Valve seats, gear boxes, hydraulic components, motors,,,

CONTROL
Aerosols, injectors…

D28+ SPEED : FEATURES

• Flow measurement in direct or indirect testing
• Continuous measuring mode
• Wide flow measurement range
• USA, S.I. and customer units
• Measurement in standard or customised conditions
• Recalculated flow at the nominal pressure
• Measurement element fully integrated into one module
• 128 programs
• Setting on line (via USB)
• 2 languages (English + other one)
• Data storage on internal memory or USB key

ENVIRONMENT :
ROHS standard

FLEXIBLE COMMUNICATION FORMAT :

• RS232: Printer, modbus RTU
• Slave USB: PC supervision (WinAteq 300, sesame)
• Master USB: USB key to transfert (parameters, results, …)
• Option Fieldbus: Profibus, devicenet, profinet, Ethernet/IP, Modbus RTU

MEASUREMENT RANGES :

FLOW MEASUREMENT
Range (L/h)	Accuracy	Max. resolution (L/h)
1	±(25%F + 0.001 L/h)	0.0001
5	±(25%F + 0.005 L/h)	0.0001
30	±(25%F + 0.03 L/h)	0.001
80	±(25%F + 0.08 L/h)	0.001
150	±(25%F + 0.15 L/h)	0.01
500	±(25%F + 0.5 L/h)	0.01
1,500	±(25%F + 1.5 L/h)	0.1
4,000	±(25%F + 4 L/h)	0.1
10,000	±(25%F + 10 L/h)	1

D28+ SPEED : SPECIFICATIONS

Physical	Weight: About 6kg (13.13 lb)
External electrical supply	Voltage: 24 V DC / 1.6 A
Air supply	Clean and dry air required Air quality standard to be applied (ISO 8573-1) Test pressure input, needs an external regulator
Temperature	Operating: +5°C to +45°C Storage: 0°C to +60°C
