AUTOMATED ROBOTIC LEAK TESTING

ATEQ’s robotic sniffing solution operates by combining highly sensitive leak detection sensors with precise robotic movement. The system guides a sniffing probe along pre-programmed paths around critical areas of a component or assembly, detecting and quantifying leaks with exceptional accuracy. This automated process ensures consistent coverage, eliminates human error, and provides real-time feedback, making it ideal for high-volume production environments demanding reliable and repeatable leak testing.

AVAILABLE SOLUTION FOR ROBOTIC SNIFFING

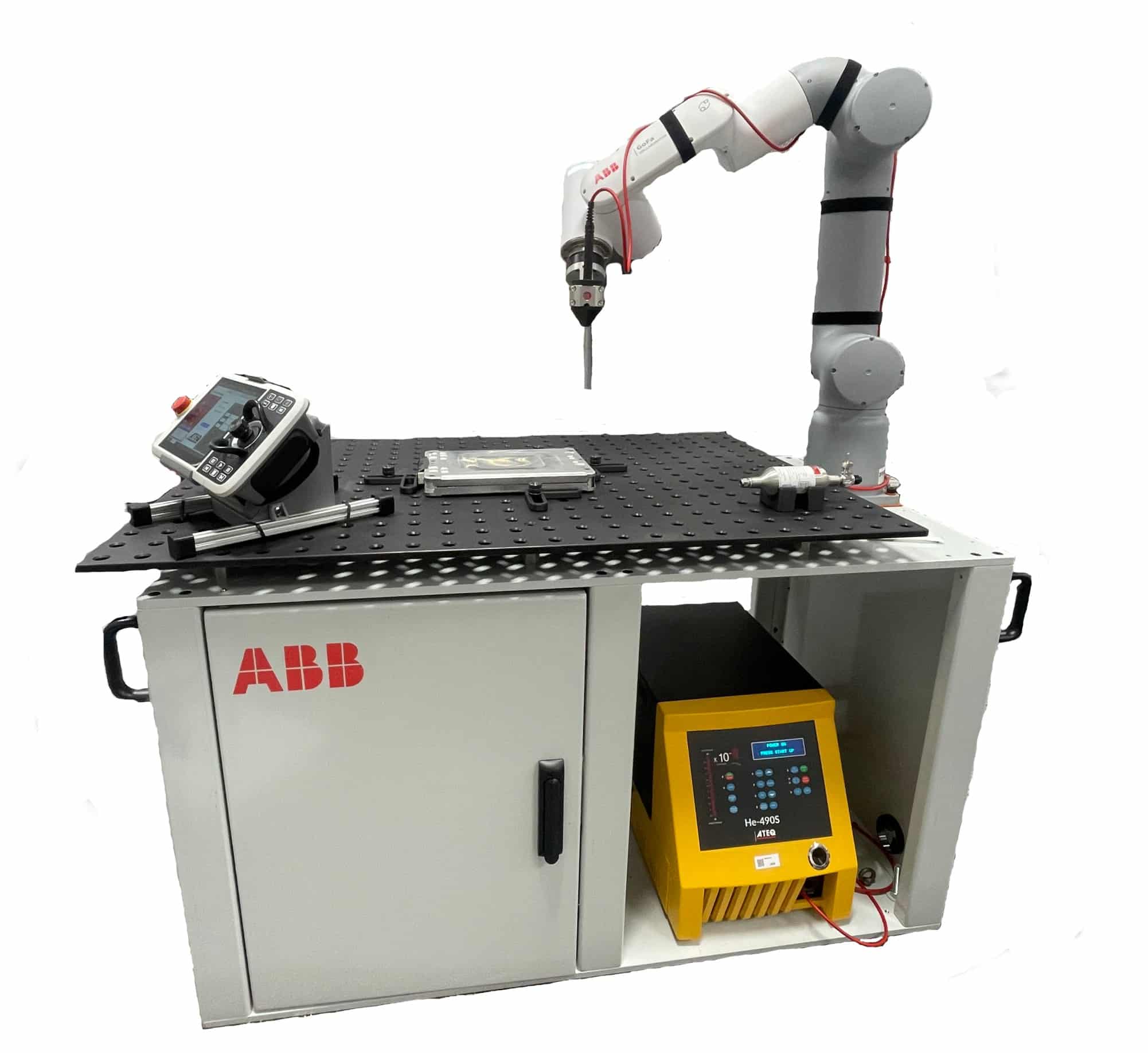

The ABB GoFa™ CRB 15000 is a state-of-the-art collaborative robotic arm engineered to enhance productivity across various industries. With a payload capacity of up to 12 kg and an extended reach of 950 mm, GoFa™ is designed to work safely alongside human operators without the need for protective barriers. Its intuitive setup, featuring lead-through programming and an enhanced arm-side interface, ensures rapid deployment and ease of use. Operating at a maximum Tool Center Point speed of up to 2.2 m/s, GoFa™ delivers superior performance, making it an ideal solution for automated leak testing.

Available variants includes:

• GoFa™ 5kg
• GoFa™ 10kg
• GoFa™ 12kg

Available carts variants:

• GoFa 5 FlexCart with Siegmund Table
• GoFa 10/12 FlexCart
• GoFa Dual 10/12 Flex Cart

ATEQ Software for Robotic Leak Testing Available

Advantages Using Robotic Sniffing Solution

1. Accuracy – Robotic sniffing leak testing delivers superior accuracy by eliminating human error and precisely pinpointing leaks, even in complex parts. In contrast, manual testing is less precise and more prone to variability.

2. Repeatability – With its advanced automation, robotic sniffing leak testing guarantees consistent, repeatable results across multiple tests, eliminating variations. Manual testing, influenced by human factors, is less reliable for repetitive tasks.

3. Downtime – Automated leak testing reduces downtime with consistent, efficient operation, unlike manual testing, which faces delays from setup time and human error.

4. Traceability – Automated leak testing enhances traceability with detailed reports for every test, unlike manual testing, which relies on error-prone human documentation.

5. Cost – Automated leak testing lowers mid-term costs with reduced labor, higher efficiency, and fewer errors. Manual testing may seem cheaper initially but leads to higher costs from slower processes and inconsistent results.

ATEQ TRACER GAS SNIFFING INSTRUMENTS – FULLY INTEGRABLE

ATEQ’s HX-490S Dual Gas Leak Detector and Smart Charge 5 evacuation and backfill system offer a fully integrable solution for robotic leak testing applications. The HX-490S provides rapid response times and high sensitivity for detecting leaks using helium or hydrogen tracer gases, making it ideal for automated environments. Complementing this, the Smart Charge 5 automates the evacuation and precise backfilling of tracer gases, streamlining the preparation process for leak testing. Together, these systems enhance efficiency and accuracy in robotic leak detection setups.
