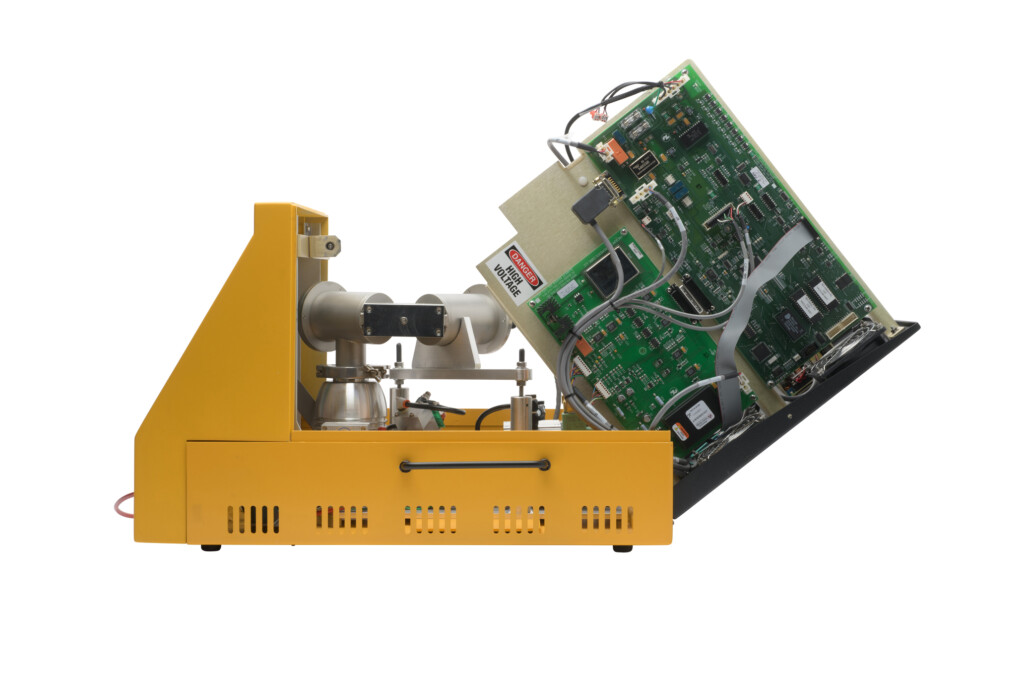

HE-490S

TRACER GAS LEAK DETECTION FOR INDUSTRIAL QUALITY CONTROL

Trusted by manufacturers worldwide, ATEQ offers cutting-edge tracer gas solutions for precise and reliable leak detection. Other similar instruments includes:

HX-490S – Dual Gas Sniffer for Helium and Hydrogen
SMART CHARGE 5 – Automatic Tracer Gas Handling System

All models feature fast response times, advanced filtering for background suppression, and intuitive interfaces — engineered to maximize productivity and safety in industrial environments.

Fast. Sensitive. Proven.

The He-490S and Hx-490S deliver unmatched leak detection sensitivity in compact formats, while the Smart Charge 5 automates tracer gas filling and evacuation, ensuring operator safety and consistent test cycles.

APPLICATION

EMOBILITY
- Battery Packs
- Pouches & Cells
- Modules
- Housing…

AUTOMOTIVE
- Air Conditioning
- Radiators
- Exhaust
- Transmission…

ELECTRONICS
- Hard Disk
- Watches
- TV Screen
- Camera Lenses…

MEDICAL
- Blister Packs
- Fluid Bags
- Filters
- Condoms…

FEATURES

GENERAL
- Helium background suppression
- Maintenance free, dry pump
- Less than 3 minutes start-up time
- Sealed membrane keypad
- Fully interactive system diagnostics with multilingual display
- High output (110dB) adjustable audio alarm

TEST MODES
- Sensitivity up to 5 x 10-8 atm cc/sec
- Fully automatic calibration sequence with built-in 10-5 atm cc/sec gas leak
- Pressure Measurement: Probe blocked sensor (10-3 Torr)
- Turbopump Speed characteristics for high vacuum (10-6 Torr)
- Internal Calibrated Gas Leak: ATEQ model M05, range is 1.5 x 10-5 to 7.5 x 10-5 atm cc/sec (150cc DOT rated cylinder, ISO 17025 and NIST traceable)

FLEXIBLE COMMUNICATION FORMAT
- Analog Outputs
- AC & DC PLC Interfacing
- Full duplex RS232 communication
- Data Link Software (option)

SPECIFICATIONS

PHYSICAL
- Weight: 70 lbs / 31.8 kg
- Dimensions: (WxHxD) 344 x 395 x 618 mm
ELECTRICAL SUPPLY
- 115/220 Volts AC, 60/50 Hz 6/3 Amps; CE Compliant
TEMPERATURE
- Operating: 32F to 115F / + 0°C to + 46°C
- Storage: 32F to 140F / + 0°C to + 60°C

OPTIONS & ACCESSORIES

ADD-ONS
- ATEQ exclusive Vibrated-Probe w/built-in Auto Zero switch
- Remote Display
- Carrying Case
- Portable Cart
- Test Booth and Fixturing
- Multi-point probes
- Leak Calibrator
- Master Leak
- Connectors
- Robotic Sniffing…
