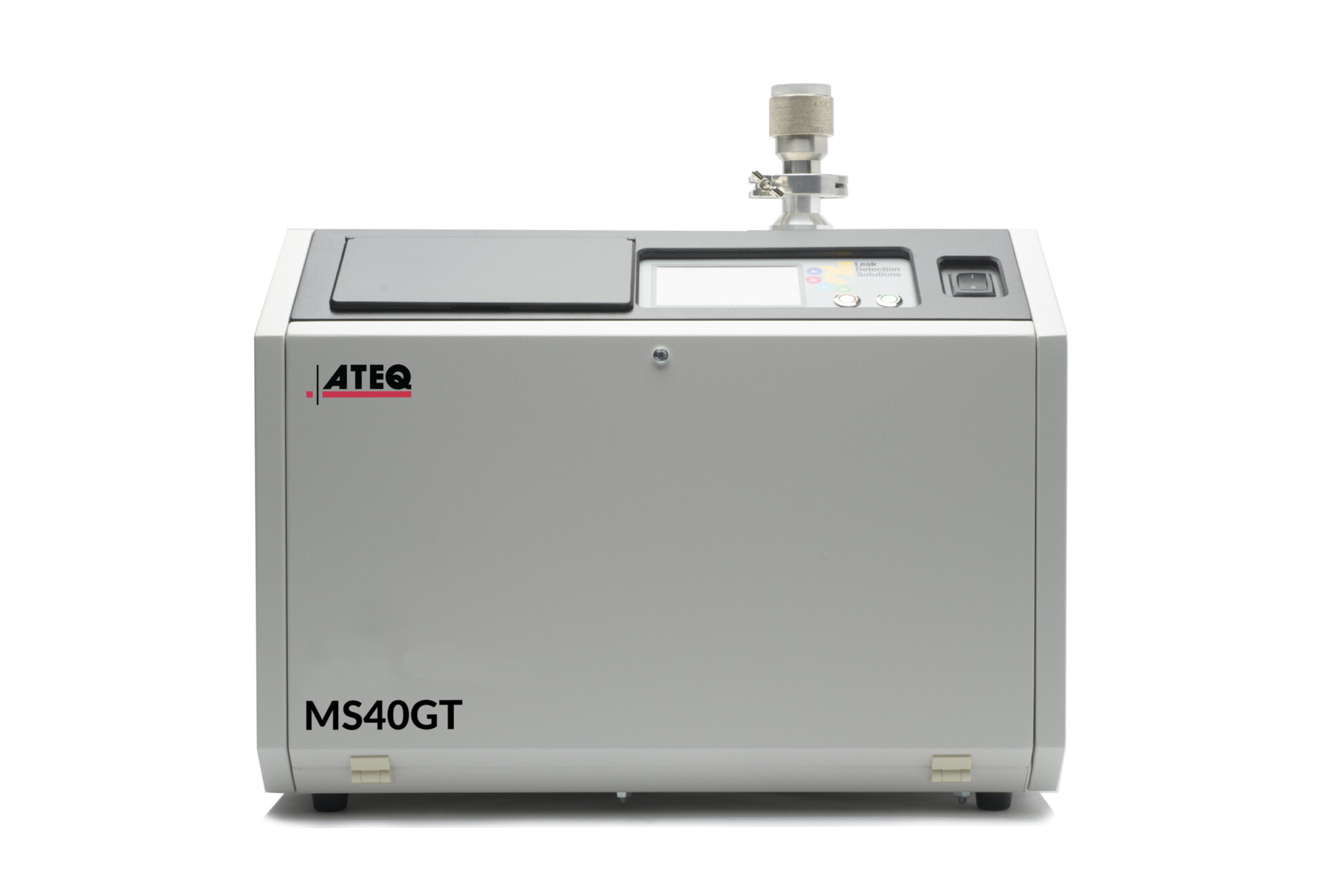

MS-40GT

HELIUM LEAK DETECTOR FOR HIGH-PERFORMANCE INDUSTRIAL TESTING

The MS Series of leak detectors represents the world’s largest installed base of fully automatic, easy-to-use, and highly accurate leak testers. Designed for clean, oil-free testing, these advanced instruments are ideal for a broad range of industrial applications.

Breakthrough technology combines high test port pressure, a large internal vacuum pump, and ATEQ’s unique mass spectrometer, making the MS Series at least four times faster than conventional portable leak detectors. Other instruments includes:

MS-50GT – High Speed Production Console
SMART CHARGE 5 – Automatic Gas Handling System

The MS-40GT is available in multiple configurations to suit diverse testing environments. Customers can choose between models equipped with either a dry (oil-free) or wet (oil-sealed) vacuum pump. A cleanroom-compatible version is also available, designed specifically for contamination-sensitive industries such as medical, semiconductor, and aerospace manufacturing.

APPLICATION

EMOBILITY
- Battery Packs
- Pouches & Cells
- Modules
- Housing…

AUTOMOTIVE
- Air Conditioning
- Radiators
- Exhaust
- Transmission…

PACKAGINGS
- Aerosol Caps
- Plastic Bags
- Sprays
- Plastic Bottles...

ELECTRONICS
- Hard Disk
- Watches
- TV Screen
- Camera Lenses…

MEDICAL
- Blister Packs
- Fluid Bags
- Filters
- Condoms…

FEATURES

GENERAL
- Touch Screen Graphical User Control Interface
- Simple one-button start up
- Fully automatic operation, tuning and calibration with internal NIST traceable temperature compensated calibrator
- Three modes of operation in a single unit
- Built-in diagnostics for trouble-free maintenance
- Dual magnetic sector mass spectrometer with resolving power of 14
- Allows testing for the smallest leaks at the highest pressures
- Ready to test in under three minutes
- Reduces operator training: easy to use
- Auto-zeroing with continuous background compensation
- Rotary vane and dry pumps available

TEST MODES
- Sensitivity in Direct Mode: 4 x 10-11 atm cc/sec
- Sensitivity in Reverse Mode: 4 x 10-10 atm cc/sec
- Sensitivity in Sniff Mode: 5 x 10-7 atm-cc/sec
- Time To Test: 1.5 seconds on a blank test port
- Response Time: Direct Mode <2 seconds, Reverse Mode <3 seconds
- Maximum Inlet Pressure: atmosphere in Gross (with dedicated
  external roughing pump), 7.5 Torr in Fine
FLEXIBLE COMMUNICATION FORMAT
- Full duplex RS232 communication
- Parallel Printer Port
- Chart Recorder Output
- Audio Output
- Remote Output
- Option Data Link Software

SPECIFICATIONS

PHYSICAL
- Weight: 39.5 kg wet unit, / 43.6 kg dry unit
- Dimensions: (WxHxD) 20.5 x 15 x 14 Inches
ELECTRICAL SUPPLY
- 115/50-60/8; 230-240/50-60/5; 100/50-60/8 (V/Hz/A)
TEMPERATURE
- Operating: + 0°C at + 46°C
- Storage: 0°C at + 60°C

OPTIONS & ACCESSORIES

ADD-ONS
- Handheld remote control unit with 25’ or 50’ cord
- External roughing kit, w/valving and manifolding and pumpn
- Mobile cart
- Mini Sniffer Probe
- Hard travel case

ACCESSORIES
- Calibrated Gas Leaks
- Helium Bombing Station
- Connectors
- Test Cup…
OTHER FORMATS
- MS-40GT Wet Pumping Package
- MS-40GT Dry Pumping Package
- MS-40 Dry Clean Room Compliant
- MS-40 GT Plus Package with external wet or dry pumping package
- MS-50 GT Console Units featuring wet, dry, high sensitivity, dual port, UFT or argon configurations
